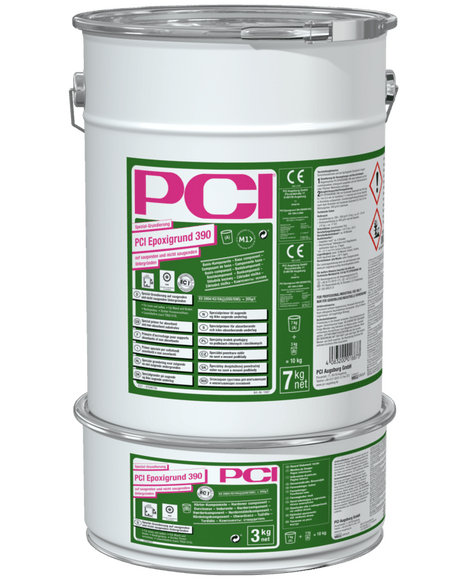

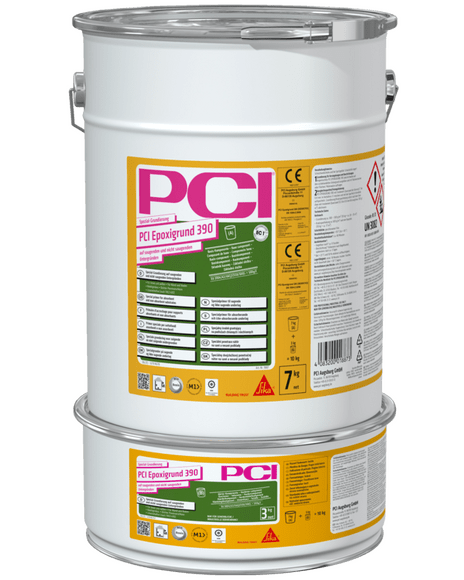

PCI Epoxigrund 390
Special primer
on absorbent and non-absorbent substrates
Areas of application
- For indoor and outdoor use.
- For walls and floors.
- Primer for PCI sealings and PCI coatings on cementitious substrates, mastic asphalt screeds, ceramic tiles, synthetic resin coatings and wooden substrates.
- Primer for floors in the interior before applying floor levelers/fairing coats, also when subsequently bonding parquet flooring on
- concrete floors, cement screeds, calcium sulfate screeds, magnesite screeds
- mastic asphalt screeds
- ceramic tiles and synthetic resin coatings
- wooden substrates
- substrates with residues of dispersion, reaction resin, water soluble (e.g. spent sulfite liquor adhesive) and bitumen adhesives. - Suitable as leveler and/or fairing coat when mixed with silica sand.
- As a binding agent for producing screeds, repair mortars and drain mortars based on epoxy resin.
- Suitable for the use on ships; meets the requirements of Marine Equipment Directive (MED) 96/98/EC.
Product features
- Low viscosity, reliable bond of subsequent coatings and/or sealings.
- Impermeable sealing of pores, prevents air bubbles from ascending from the substrate into the top coat.
- Moisture barrier (two coats necessary) up to a residual moisture ≤ 7 CM% in the substrate of cement screeds, on underfloor heatings up to a residual moisture ≤ 5 CM%, when used as a primer before applying floor levelers with textile and resilient flooring or parquet to be subsequently laid.
- Solvent free to TRGS 610, no damage to environment and operative due to solvent vapors, no danger of fire or explosion.
- Very low emissions, GEV-EMICODE EC 1.
- EU 2004/42/IIA(j)(550/500): < 200 g/l.
Colors:
colourless - transparent, transparent
Forms of delivery:
25-kg-set/ 17,50-kg-hobbock/ 7,50-kg-pail/ 10-kg-pail/ 1-kg-can
Consumption calculator
Your Result
Quantity Required approximately
kg
corresponds
25-kg-set
pieces
10-kg-pail
pieces
1-kg-can
pieces
Your Result
Quantity Required approximately
kg
corresponds
25-kg-set
pieces
10-kg-pail
pieces
1-kg-can
pieces
This consumption calculation included in the program contains approximate values based on experiences which might considerably vary upwards and also downwards depending on the structure of substrate, type of tiles, different profiles on the reverse sides, type of tiling tools, work method a.o. Calculations are therefore not allowed to be based on these values. In case of larger projects we recommend to assess the consumption by making a trial surface. Applications in the combined method (buttering-floating) increase the consumption by approx. 20 to 25%. In case of powder products the data relate to the consumption of dry powder for easier calculation of the material requirement.
Building pros also use:
PCI Pericret®
Leveling compound for floors, walls and overhead application
PCI Apoflex® F
Polyurethane waterproofing for areas exposed to water and chemical attacks
PCI Apoflex® W
Polyurethane waterproofing for areas exposed to water and chemical attacks
Matching product systems
More product systems
System for Industrial Tiling
System for laying tiles in areas with chemical attack and high mechanical loads

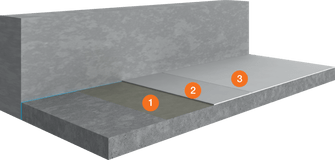

System for Floor Coating
