System Marine Universal C
Multi-use laying system for tiles and natural stone coverings on steel substrates

Description

The Marine Universal C System can be used for a variety of tiling works to lay tiles or natural stones on a steel substrate. The application of PCI Gisogrund 404 primer produces an adequate bond between the steel substrate with corrosion protection and the leveling layer on top. Tiles or natural stones can be subsequently laid and top surface can be grouted.

System advantages

  • Includes very low-emission products ensuring a healthy room climate, tested and classified in accordance with GEV-EMICODE
  • PCI Nanofug Premium, the grouting material for ceramic and natural stone; with easy-to-clean effect for clean, hygienic joints
  • Suitable for use on ships; approved in accordance with MED (Marine Equipment Directive) and USCG (U.S. Coast Guard) requirements

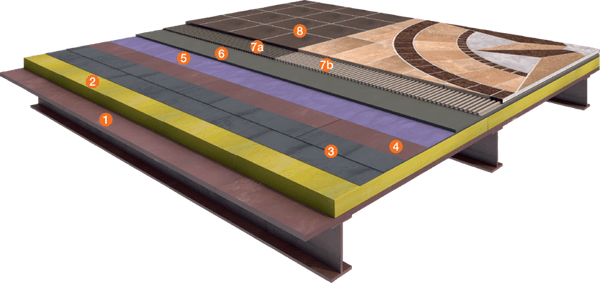

You need

System Marine Universal C
1


Supporting structure

Steel substructure

2


Substrate

Insulation

3


Substrate

Steel plates

4


Corrosion protection applied by shipbuilder

Corrosion inhibitor

5

Primer

PCI Gisogrund® 404

Wash primer for absorbent and non-absorbent substrates
PCI Gisogrund® 404
6


Floor leveler

PCI Periplan® Extra

Leveling compound for critical substrates under top coverings
PCI Periplan® Extra
7a

Adhesive

PCI Flexmörtel® S2

Highly flexible tile adhesive for all ceramic coverings
PCI Flexmörtel® S2
8

Joint grout

PCI Nanofug® Premium

Multi-use flexible joint grout for all tiles and natural stones
PCI Nanofug® Premium

PCI Durapox® NT

Reaction resin binder for laying and grouting ceramic coverings exposed to chemicals
PCI Durapox® NT

PCI Durapox® NT plus

Reaction resin mortar for laying and grouting of ceramic coverings exposed to chemicals
PCI Durapox® NT plus

PCI Durapox® Premium

Epoxy resin mortar for laying and grouting ceramic coverings
PCI Durapox® Premium

PCI Durapox® Premium Multicolor

Epoxy resin mortar for laying and grouting ceramic coverings
PCI Durapox® Premium Multicolor
